High Performance and High Density
Supports dual 4th/5th Gen Intel® Xeon® Scalable processors (up to 350W TDP).
32x DDR5 RDIMM slots (5600MT/s with Emerald Rapids, 4800MT/s with Sapphire Rapids).
24x front-accessible 2.5" NVMe (PCIe 5.0 U.2) + 2x rear 2.5" SATA hot-swap bays.
High Scalability
4x PCIe 5.0 slots (2x x16 for GPUs + 2x OCP 3.0).
3x 8-bay NVMe PCIe Gen5 backplanes for ultra-fast storage

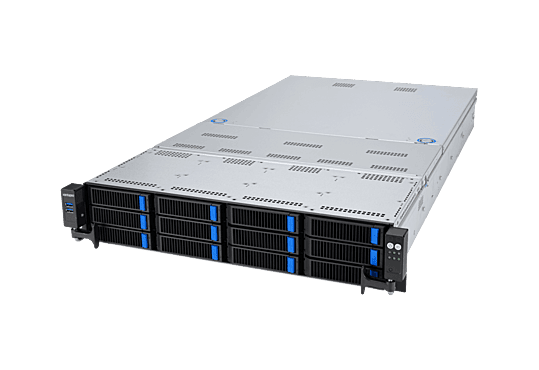

Vantageo 2240-RA
The Vantageo 2240-RA is a high-density 2U all-flash server designed for performance-critical workloads, supporting dual 4th/5th Gen Intel® Xeon® Scalable processors (Sapphire Rapids/Emerald Rapids). It combines massive storage capacity with cutting-edge PCIe Gen5 expansion for enterprise and data center applications.
Advance Management
Aspeed AST2600 BMC with IPMI 2.0, Redfish, and KVM-over-LAN.
AMI UEFI BIOS with TPM and secure boot capabilities.
Energy Efficiency
2000W 80+ Platinum/Titanium redundant power supplies.
6x hot-swap fans with optimized airflow design
Technical Specifications
| Form Factor | 2U rack server |
| Processor | Dual 4th/5th Gen Intel® Xeon® Scalable (Sapphire Rapids/Emerald Rapids) |
| Memory | 32x DDR5 RDIMM: 5600MT/s (Emerald Rapids, 1DPC) or 4800MT/s (Sapphire Rapids) |
| Storage | Front: 24x 2.5" NVMe (PCIe 5.0 U.2) |
| Rear: 2x 2.5" SATA hot-swap | |
| Internal: 2x M.2 (PCIe Gen4) | |
| GPU Support | 2x PCIe 5.0 x16 slots (reserved for GPUs) |
No software files available for this model yet.
No firmware files available for this model yet.
Vantageo 2240-RA
The Vantageo 2240-RA is a high-density 2U all-flash server designed for performance-critical workloads, supporting dual 4th/5th Gen Intel® Xeon® Scalable processors (Sapphire Rapids/Emerald Rapids). It combines massive storage capacity with cutting-edge PCIe Gen5 expansion for enterprise and data center applications.
High Performance and High Density
Supports dual 4th/5th Gen Intel® Xeon® Scalable processors (up to 350W TDP).
32x DDR5 RDIMM slots (5600MT/s with Emerald Rapids, 4800MT/s with Sapphire Rapids).
24x front-accessible 2.5" NVMe (PCIe 5.0 U.2) + 2x rear 2.5" SATA hot-swap bays.
High Scalability
4x PCIe 5.0 slots (2x x16 for GPUs + 2x OCP 3.0).
3x 8-bay NVMe PCIe Gen5 backplanes for ultra-fast storage
Advance Management
Aspeed AST2600 BMC with IPMI 2.0, Redfish, and KVM-over-LAN.
AMI UEFI BIOS with TPM and secure boot capabilities.
Energy Efficiency
2000W 80+ Platinum/Titanium redundant power supplies.
6x hot-swap fans with optimized airflow design
Technical Specifications
| Form Factor | 2U rack server |
| Processor | Dual 4th/5th Gen Intel® Xeon® Scalable (Sapphire Rapids/Emerald Rapids) |
| Memory | 32x DDR5 RDIMM: 5600MT/s (Emerald Rapids, 1DPC) or 4800MT/s (Sapphire Rapids) |
| Storage | Front: 24x 2.5" NVMe (PCIe 5.0 U.2) |
| Rear: 2x 2.5" SATA hot-swap | |
| Internal: 2x M.2 (PCIe Gen4) | |
| GPU Support | 2x PCIe 5.0 x16 slots (reserved for GPUs) |
